RF predistortion module

RF predistortion module

      HJX94DXX pre-distortion module is a fast solution for RF power amplifier pre-distortion correction, which can effectively improve the linearity of the power amplifier, and basically covers all cellular frequency bands and supports various modulation standards. Compared with the traditional digital signal processing solution DPD, the platform consumes less energy, costs less, and is easy to use.

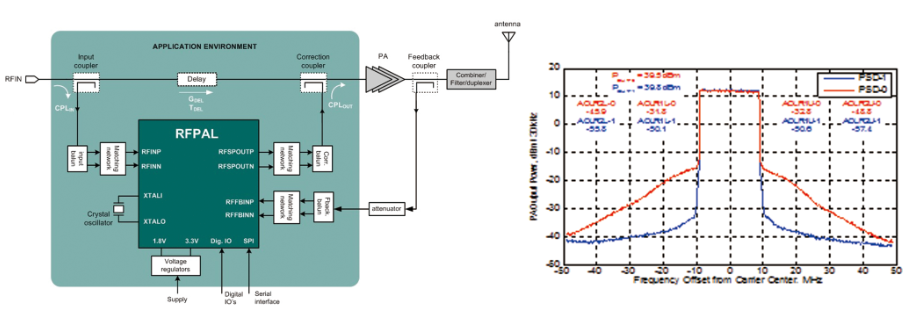

      HJX94DXX predistortion module integrates RF input signal differential matching, power amplifier feedback signal differential matching, predistortion precorrection signal differential matching, crystal oscillator circuit, reset circuit, power supply circuit, reserved delay device access and other circuits, enabling customers to use Any required configuration quickly brings a linearized power amplifier solution to market, while minimizing development and production costs.


Product Details

Describe:

  A fast solution to linearization of power amplifiers

Features:

  Operating voltage+5V

  Module size30mm X 30mm1894.png

产品型号

ModelOperating FrequencyModelOperating FrequencyModelOperating Frequency
HJX94D02225-520MHz————————
HJX94D05520-1040MHzHJX05D10800-1040MHzHJX94D09N520-1040MHz
HJX94D151400-1800MHzHJX05D151400-1800MHzHJX94D15N1400-1800MHz
HJX94D191800-2200MHzHJX05D191800-2200MHzHJX94D19N1800-2200MHz
HJX94D242300-2700MHzHJX05D242300-2700MHzHJX94D24N2300-2700MHz
HJX94D343300-3800MHzHJX05D343300-3800MHzHJX94D34N3300-3800MHz


For more information or to order products, please contact Xiamen Hejiaxing Sales Office.

Mobile: +86-13600975566

WeChat:13600975566

QQ: 2355620732

Mail:zf@hjx.cn
