     MiniTRX-Z is a low-power and small footprint board, based on ADI's RadioVerseTM technology AD9361, enables dramatic reduction in design cycles of your products.
HJX MiniTRX-Z has been added to ADI's RadioVerseTM 3rd Party Reference Designs and Hardware

Product Details


  Key Features


  - Fully-verified, low-power, ready forend-product deployment

  - Xilinx Zynq XC7Z035-2FFG676I AP SoC
  - 1GB DDR3 SDRAM
  - 256Mb QSPI Flash
  - microSD Card Interface
  - 10/100/1000 Ethernet PHY
  - USB3.0 PHY (HardwareReady)
  - RS232/RS422/I2C
  - Humidity Sensor with Integrated Temperature Sensor
  - GPIO
  - LNA operate between 2GHz and 6GHz
  - RF Digital Step Attenuator(DSA),31.5dB attenuation range in 0.5dB steps(1MHz to 4GHz)
  - Bypass LNA and DSA to support 70MHz to 6.0GHz
  - Size: 120mm*75mm
  - Analog Devices AD9361-BBCZ Integrated RF Agile Transceiver™
    RF 2 × 2 transceiver with integrated 12-bit DACs and ADCs
    Band: 70 MHz to 6.0 GHz
    TDD and FDD operation
    Tunable channel BW:<200 kHz to 56 MHz
    Supports MIMO radio: < 1 sample sync on both ADC and DAC
    Miniature RF connectors &ndash; 4 TX, 4 RX, 2 TX monitor

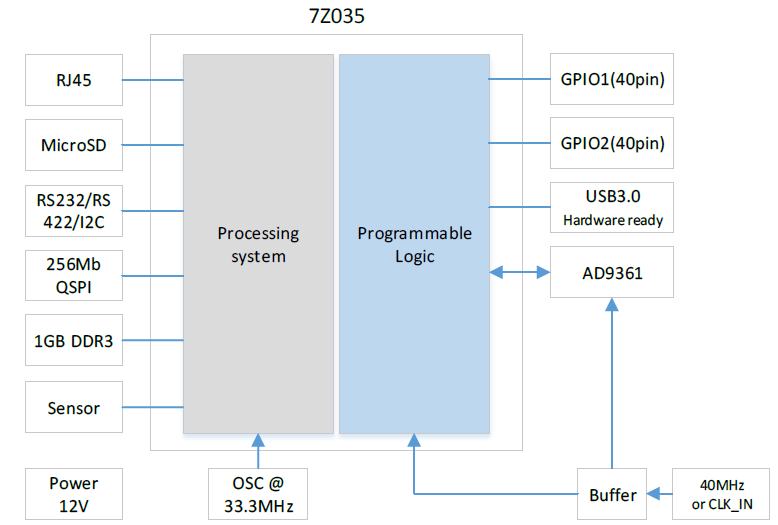

Figure2 - Simplified Block Diagram


  MiniTRX-Z Getting Started Design
2.jpg  The Getting Started design implements the data interfaces to/from the AD9361 RF transceiver through which baseband signals are mixed to RF for over-the-air loopback from transmitter to receiver. Data path and control signals between the AD9361 and Zynq SoC are shown in Figure3.
  -  MiniTRX-Z No-OS Software: based on ADI&rsquo;s AD9361 No-OS API Branch 2017_R1
Figure3 - HDL Reference Design

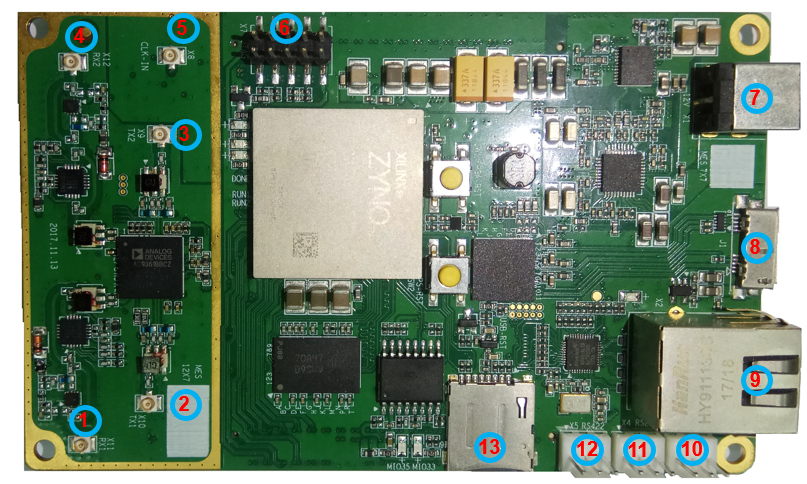

  MiniTRX-Z Interface
Figure3

(1)     IPEX AD9361 RX1
(2)     IPEX AD9361 TX1
(3)     IPEX AD9361 TX2
(4)     IPEX AD9361 RX2
(5)     IPEX CLK_IN ( optional clk input)
(6)     JTAG
(7)     Power 12V
(8)     USB3.0
(9)     RJ45
(10)  I2C
(11)  RS232
(12)  RS422
(13)  MicroSD

  Getting Started Guide
  This guide will show you how to setup MiniTRX-Z board and your computer to get started.
  MiniTRX-Z Getting Started Guide v1.1.pdf
